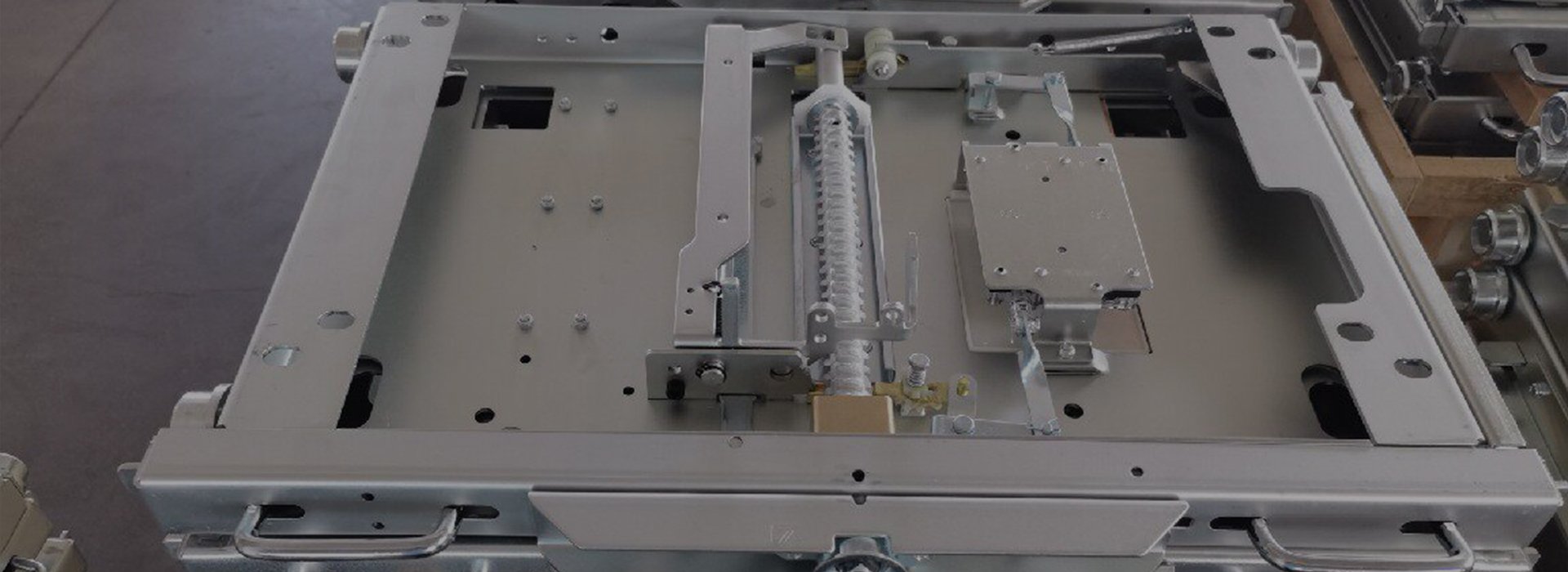

Yirong VCB truck is a dedicated mobile accessory tailor-made for vacuum circuit breakers. It serves as an essential auxiliary tool for installation, maintenance and push-pull operations of high-voltage switch cabinets.Manufactured with thickened metal frames and fine welding workmanship, the trolley features a solid and durable overall structure. It slides smoothly and delivers precise positioning during operation. With a simple and practical design, it allows easy assembly and disassembly.
It aligns accurately when pushed into or pulled out of the cabinet, moving flexibly without jamming or stalling. Boasting reliable load-bearing capacity and excellent durability, it stands up to long-term and repeated on-site use.This VCB truck matches perfectly with mainstream vacuum circuit breakers including VS1 and ZN63a models. It is widely adopted in power distribution rooms, substations, industrial power stations and municipal power supply projects.
We focus on the manufacturing and customisation of professional VCB truck. Every product undergoes strict dimension checking and full performance testing before delivery. This guarantees precise matching and smooth running with your switch cabinets.We provide both standard and non-standard custom sizes, to fit various types of switch cabinets and circuit breakers for different site requirements.

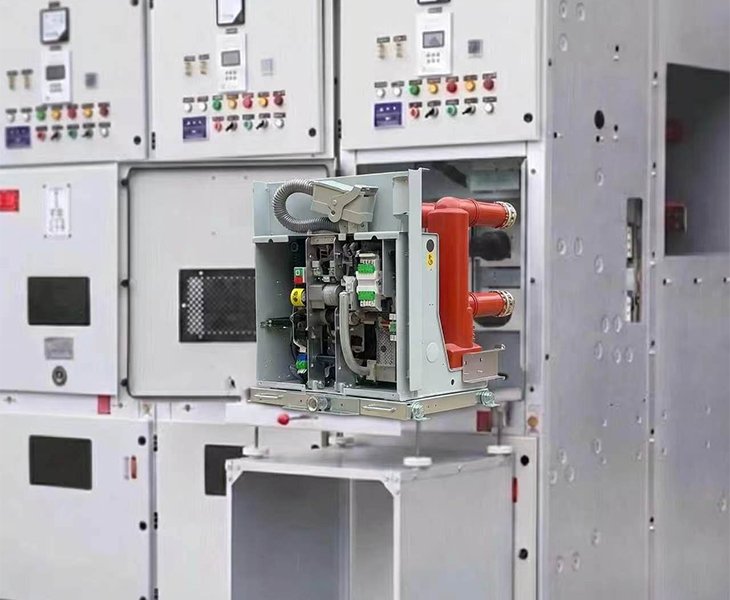

Effortless & Smooth Push-Pull Movement
Fitted with high-precision guide rails and shock buffers, our VCB trolley delivers ultra-smooth sliding performance. We optimized the internal transmission structure to minimize friction between moving parts. On-site staff can push and pull the trolley with minimal effort for daily cabinet operations.
Built with a professional positioning and locking device, the trolley achieves perfect alignment when inserted into the switch cabinet. It effectively avoids common problems such as misalignment and mechanical jamming. This user-friendly design simplifies equipment handling and greatly improves your efficiency for maintenance and part replacement.

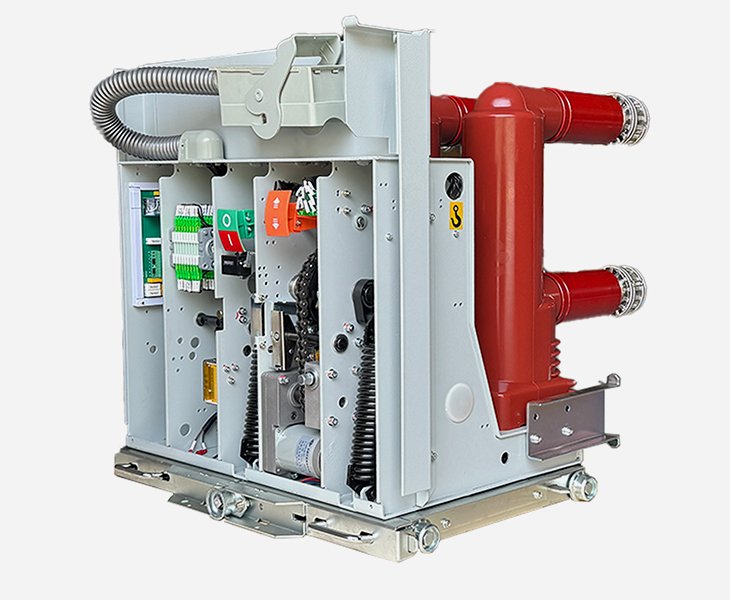

Multi-Point Safety Interlock System
Our VCB trolley features a full set of interlock protection, covering mechanical, electrical and position interlocks. It standardizes all on-site operations with strict safety logic.
The trolley is mechanically locked and only movable when the circuit breaker is open. In the same way, the breaker can only be closed after the trolley is fully seated and securely locked in place.
This foolproof interlock system prevents operational mistakes on site. It eliminates electric shock and short-circuit risks, protects operators from safety hazards, and maintains stable and reliable operation of the entire power distribution system.
First, confirm the earthing switch is open, the cabinet door is fully closed, and the five-prevention interlock is unlocked. Next, check the guide rails for foreign objects. Also verify whether the drawer is tilted or stuck on the rails.
This issue mainly stems from four common faults. The drawer may not be fully locked in place. Aging tulip contacts can cause insufficient spring tension. Mismatched moving and static contacts will also cause heating. In addition, oxidized or dirty contact surfaces lead to poor conductivity.
You can fix the problem by repositioning and fully seating the drawer, replacing worn contacts, cleaning the contact surface and applying conductive grease.
This indicates a fault with the five-prevention interlock system. It is usually caused by deformed interlock connecting rods, loose springs or worn parts.
Stop using the equipment immediately and arrange maintenance. This fault may cause dangerous accidents if the drawer is pulled out under load.
